hello

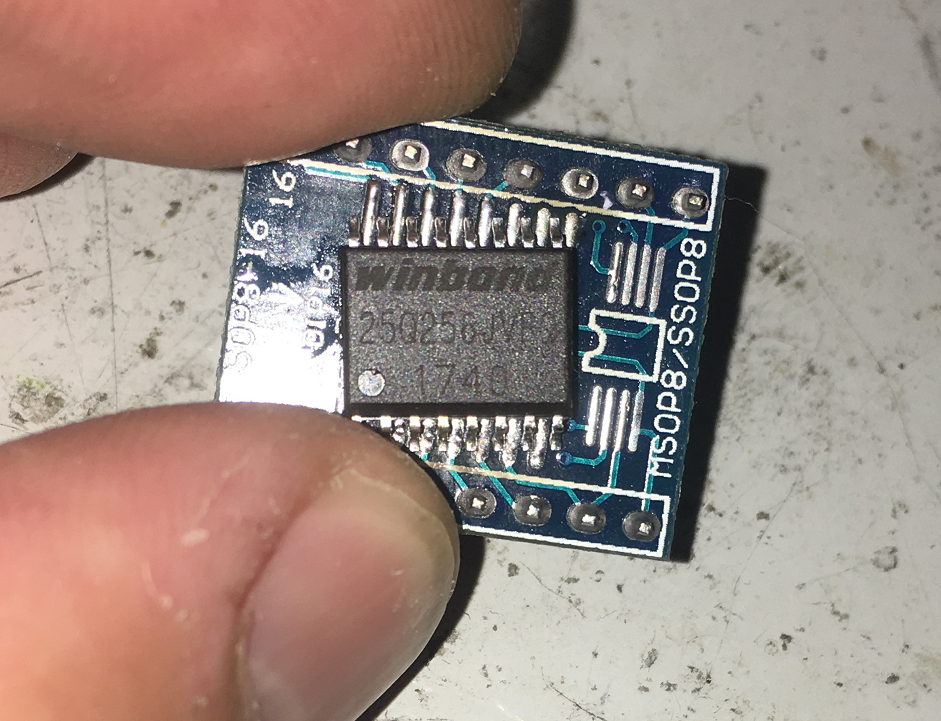

i can't read this chip on my new revelprog-is ??
i think that programmer not reading this chip anyone can confirme please
thank u in advance
Winboard 25q256jvfq
-
foulou0238
- Posts: 4
- Joined: Mon Nov 19, 2018 3:13 pm
- Has thanked: 2 times
-
ArT
- Posts: 1538
- Joined: Wed Mar 25, 2015 8:54 am
- Location: Warsaw, Poland
- Has thanked: 56 times
- Been thanked: 166 times
Re: Winboard 25q256jvfq
This chip is supported, but you have wrong adapter.
You should have SOIC-16 300mil to SOIC-8 adapter, like this:
viewtopic.php?f=23&t=64
Or connect it with wires or clip:
REVELPROG-IS -> FLASH SPI (16 pin)
pin 1 (cs) -> pin 7
pin 2 (miso) -> pin 8
pin 3 (wp) -> pin 9
pin 4 (gnd) -> pin 10
pin 5 (mosi) -> pin 15
pin 6 (sck) -> pin 16
pin 7 (hld) -> pin 1
pin 8 (vpp) -> pin 2
You should have SOIC-16 300mil to SOIC-8 adapter, like this:
viewtopic.php?f=23&t=64
Or connect it with wires or clip:
REVELPROG-IS -> FLASH SPI (16 pin)
pin 1 (cs) -> pin 7
pin 2 (miso) -> pin 8
pin 3 (wp) -> pin 9
pin 4 (gnd) -> pin 10
pin 5 (mosi) -> pin 15
pin 6 (sck) -> pin 16
pin 7 (hld) -> pin 1
pin 8 (vpp) -> pin 2
