Adapter for FLASH SPI 6x5 or 8x6 or 3x4 or 2x3 (WSON-8, QFN-8, UDFN-8, VDFN-8, MLP-8, MLF-8, WSOP-8)

[ArT]

We are receiving questions how to programm chips in package with pads on the bottom side - it looks like this:


There are two types of this kind of packages:

• 8x6 mm, 1.27mm pitch
• 6x5 mm, 1.27mm pitch

Most popular names of these packages are:

• WSON-8,
• QFN-8,
• MLF-8,
• MLP-8,
• UDFN-8,
• VDFN-8,
• WSOP-8.

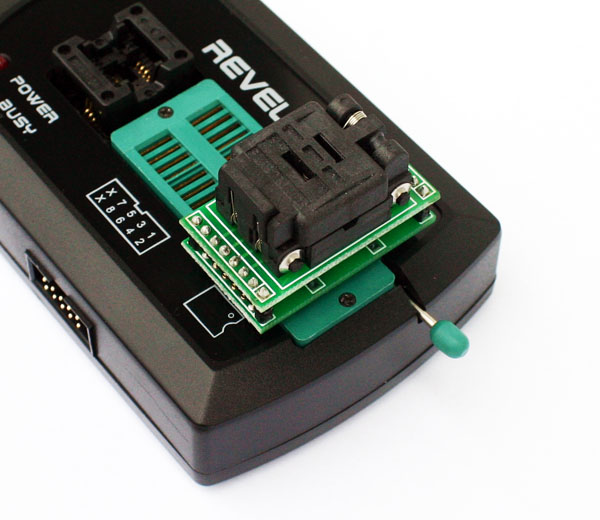

There are dedicated adapters for both types:



• both are pin to pin (1 to 1) socket converters for DIL-8 or DIP-8 sockets so it's compatible with most programmers (e.g. with REVELPROG-IS)
• both adapters are available on REVELTRONICS' store


WSON-8 example video:


Example device list for 6x5 mm package:

ATMEL, ADESTO (5x6 UDFN-8, 6x5 VDFN-8):
AT25DF021A, AT45DF041A, AT25DF041B, AT25DF081A, AT25DF321A, AT25DF641A, AT25XE021A, AT25XE041B, AT25XV041B, AT25DL081, AT25DL161, AT25DQ321, AT25PE20-MHN, AT25PE40-MHN, AT25PE80-MHN, AT25PE16-MHN, AT26DF161, AT26DF161A, AT26F004, AT45DB011D, AT45DB021D, AT45DB021E, AT45DB041D, AT45DB041E, AT45DB081D, AT45DB081E, AT45DB161D, AT45DB161E, AT45DB321D, AT45DB321E, AT45DB641E, AT45DQ161, AT45DQ321

GIGADEVICE (WSON8 6x5mm)
GD25LQ05C, GD25LQ10C, GD25LQ20C, GD25LQ40C, GD25LQ80C, GD25Q80B, GD25Q80C, GD25Q16B, GD25Q16C, GD25VQ16B, GD25VQ16C, GD25LQ32C, GD25LQ32D, GD25Q32B, GD25Q32C, GD25VQ32B, GD25VQ32C, GD25LQ64C, GD25Q64B, GD25Q64C, GD25VQ64C, GD25LQ128C, GD25LQ128D, GD25Q127C, GD25VQ127, GD25LQ256C, GD25LQ256D

ISSI (5x6 WSON-8):
IS25CD512, IS25CQ032, IS25LD020, IS25LD040, IS25LP064, IS25LP128, IS25LQ010B, IS25LQ016, IS25LQ016B, IS25LQ020B, IS25LQ025B, IS25LQ032B, IS25LQ040B, IS25LQ080, IS25LQ080B, IS25LQ512B, IS25WD020, IS25WD040, IS25WQ080, IS25LP128, IS25WP128, IS25LP128F, IS25WP128F, IS25LP256D, IS25WP256D

MACRONIX (8-WSON 6x5):
MX25L2006, MX25V2006, MX25U2033, MX25U4035, MX25L4006, MX25V4006, MX25U4033, MX25L8006, MX25V8006, MX25U8035, MX25U8033, MX25V8035, MX25U1635, MX25L1606, MX25L1633, MX25U3235, MX25L3206, MX25L3235, MX25U6435, MX25L6435, MX25L12835, MX25U12835, MX25L12839, MX25L25645, MX25L25635, MX25L25639, MX25L25655, MX2525735

MICROCHIP (8-WSON 6x5, 8-WDFN 5x6):
SST25PF020B, SST25PF040B, SST25PF080B, SST25VF040B, SST25VF080B, SST25WF020, SST26VF016B, SST26VF016BA, SST26VF016BAT, SST26VF016BT, SST26VF032, SST26VF032A, SST26VF032B, SST26VF032BA, SST26VF032BAT, SST26VF032BT, SST26VF064B, SST26VF064BA, SST26VF064BAT, SST26VF064BT, SST26WF016B,nota SST26WF016BA, SST26WF016BAT, SST26WF016BT, SST26WF040B, SST26WF040BA, SST26WF040BAT, SST26WF040BT, SST26WF080B, SST26WF080BA, SST26WF080BAT, SST26WF080BT, SST26WF064C

MICRON (8-PDFN 5x6, 8-QFN 5x6, 8-VDFN 6x5, 8-VDFPN 6x5 MLP8, 8-VFQFPN 6x5):
M25P05, M25P10, M25P16, M25P20, M25P32, M25P40, M25P80, M25PE10, M25PE16, M25PE20, M25PE40, M25PE80, M25PX16, M25PX32, M25PX80, M45PE10, M45PE10S, M45PE16, M45PE20, M45PE40, M45PE40S, M45PE80, N25Q032A11EF640E, N25Q032A11EF640F, N25Q032A13EF640E, N25Q032A13EF640F, N25Q064A11EF640E, N25Q064A11EF640F TR, N25Q064A13EF640E, N25Q064A13EF640F, N25Q128A11EF740E, N25Q128A11EF740F TR, N25Q128A13EF740E, N25Q128A13EF740F TR, N25W032A11EF640E, N25W032A11EF640F TR, N25W064A11EF640E, N25W064A11EF640F TR, N25W128A11EF740E, N25W128A11EF740F TR, N25Q256, N25W256,
MT25QL128ABA1EW7, MT25QU128ABA1EW7,
MT25QL256ABA1EW7, MT25QU256ABA1EW7

ON Semicondutor (8-VFDN/VSONT 6x5):
LE25U81AQETXG, LE25S81QETXG, LE25W81QES00-AH-1

Spansion (8-USON 5x6, 8-WSON 6x5):
S25FL116K0XNFI013, S25FL116K0XNFI013, S25FL116K0XNFI013, S25FL116K0XNFI011, S25FL116K0XNFI010, S25FL032P0XNFI011, S25FL132K0XNFI011, S25FL132K0XNFIQ11, S25FL132K0XNFI013, S25FL132K0XNFI010, S25FL032P0XNFI010, S25FL127SABNFI101, S25FL127SABNFI103, S25FL127SABNFI100, S25FS128SAGNFI103, S25FS128SDSNFI103, S25FS128SAGNFI100, S25FS128SDSNFI100, S25FS128SDSNFI101, S25FS128SAGNFI101, S25FL256, S25FS256

WINBOND (8-WSON 6x5):
W25X10CLZPIG, W25X10VZPIG, W25X10BVZPIG, W25X20CLZPIG, W25X20VZPIG, W25X20BVZPIG, W25Q20CLZPIG, W25X40CLZPIG, W25Q40BWZPIG, W25X40VZPIG, W25X40AVZPIG, W25X40BVZPIG, W25Q40CLZPIG, W25Q80DVZPIG, W25Q80BLZPIG, W25Q80EWZPIG, W25Q80BWZPIG, W25X80VZPIG, W25X80AVZPIG, W25Q80BVZPIG, W25Q16DVZPIG, W25Q16DVZPIQ, W25Q16CLZPIG, W25Q16DWZPIG, W25X16VZPIG, W25Q16BVZPIG, W25Q16CVZPIG, W25Q32FVZPIG, W25Q32FVZPIQ, W25Q32FWZPIG, W25Q32BVZPIG, W25Q32DWZPIG, W25Q64FVZPIG, W25Q64FWZPIG, W25Q64DWZPIG, W25Q128FVPIG, W25Q128FVPIF, W25Q128FVPIQ, W25Q128FWPIG, W25Q256


Example device list for 8x6 mm package:

ATMEL, ADESTO (8-VDFN 6x8):
AT45DB321E-MWHF2B-T, AT45DB321E-MWHF2B-T, AT45DB321E-MWHF2B-T, AT45DQ321-MWHF2B-T, AT45DQ321-MWHFHJ-T, AT45DQ321-MWHFHK-T, AT45DB321D-MWU-SL955, AT45DB321E-MWHF-T, AT45DB321E-MWHF-T, AT45DB321E-MWHF-T, AT45DQ321-MWHF-T, AT45DB321E-MWHF-Y, AT45DQ321-MWHF-Y, AT45DB321D-MWU, AT25DF641-MWH-T, AT25DF641-MWH-T, AT25DF641-MWH-T, AT45DB641E-MWHN2B-T, AT45DB641E-MWHN2B-T, AT45DB641E-MWHN2B-T, AT25DF641-MWH-Y, AT25DF641-MWH-Y, AT45DB641E-MWHN-Y, AT45DB641E-MWHN-T, AT45DB641E-MWHN-T, AT45DB641E-MWHN-T

GIGADEVICE (WSON8 LGA8 6x8mm)
GD25Q64B, GD25Q64C, GD25VQ64C, GD25Q127C, GD25VQ127, GD25LQ128C, GD25LQ128D, GD25Q256C, GD25Q256D, GD25Q257D, GD25LT256E, GD25LQ256C, GD25LQ256D, GD25S512MD, GD25S513MD, GD5F1GQ4R, GD5F1GQ4U, GD5F2GQ4R, GD5F2GQ4UB, GD5F4GQ4R, GD5F4GQ4U, GD5F1GQ4R, GD5F1GQ4UC, GD5F2GQ4RC, GD5F2GQ4UC, GD5F4GQ4RC, GD5F4GQ4UC, GD5F1GQ4RE, GD5F1GQ4UE, GD5F1GQ4RE, GD5F1GQ4UE, GD5F2GQ4RE, GD5F2GQ4UE, GD5F2GQ4RE, GD5F2GQ4UE, GD5F1GQ4RF, GD5F1GQ4UF, GD5F1GQ4UF, GD5F2GQ4RF, GD5F2GQ4UF

ISSI (8-WSON 8x6):
IS25LQ016B-JLLE, IS25LQ032B-JLLE, IS25LP064-JLLE, IS25LP128-JLLE, IS25LP128, IS25WP128, IS25LP128F, IS25WP128F, IS25LP256D, IS25WP256D, IS25LP512M, IS25WP512M, IS25LP01G, IS25QP01G, IS37SML01G1, IS38SML01G1

MACRONIX (8-WSON 8x6):
MX25L6406EZNI-12G, MX25L6445EZNI-10G, MX25L6406EZNI-12GF, MX25U12835FZ2I-10G, MX25L12845EZNI-10G, MX25L12835FZ2I-10G, MX25L12835EZNI-10G, MX25L25635FZ2I-10G, MX25L25735FZ2I-10G, MX25L25639FZ4W-08G, MX25U25635FZ2I-10G, MX25U25635FZ4I-10G, MX25L25635EZNI-12G, MX25L25735EZNI-12G, MX66L51235FZ2I-10G, MX25L51245G, MX66U51235FZ4I-10G, MX25U51245GZ4I, MX35LF1GE4AB, MX35UF1G14AC, MX35LF2G14AC, MX35UF2G14AC

MICROCHIP (8-WSON 8x6):
SST25VF064C, SST26WF064C

MICRON (8-VDFPN MLP8 8x6, 8-VDFN 6x8):
M25P16-VME6TG, M25P16-VME6TG, M25P16-VME6TG, M25P16-VME6G, M25P32-VME6TG, M25P32-VME6TG, M25P32-VME6TG, M25P32-VME6G, N25Q032A13EF840F TR, N25Q032A13EF840E, N25Q064A13EF840F, N25Q064A13EF840E, N25Q064A13EF8H0F TR, N25Q064A13EF8H0E, N25Q064A13EF8A0F TR, M25P64-VME6TG, M25P64-VME6TG, M25P64-VME6TG, M25P64-VME6G, M25PX64-VME6TG, M25PX64-VME6TG, M25PX64-VME6TG, M25PX64-VMD6G, M25P128-VME6TGB, M25P128-VME6TGB, M25P128-VME6TGB, N25Q128A13BF840F, M25P128-VME6GB, N25Q128A13BF840E, M25P128-VME6G, M25P128-VME6TG, M25P128-VME6TG, N25Q128A11TF840F, N25Q128A13TF840F, N25Q128A21BF840F, N25Q128A23BF840F, N25Q128A11BF840F, N25Q128A11BF840F, N25Q128A13EF840E, N25Q128A11EF840E, N25Q128A13EF840F, N25Q128A11EF840F TR, N25Q128A13EF8C0F TR, N25Q128A13EF8C0E, N25Q128A13EF8A0F TR, N25Q128A13TF840E, N25Q128A21BF840E, N25Q128A23BF840E, N25Q256A13EF840E, N25Q256A11EF840F TR, N25Q256A33EF840E, N25Q256A33EF840F, N25Q256A11EF840E, N25Q256A13EF8A0F TR, N25Q512A13GF840E,
MT25QL128ABA1EW9, MT25QU128ABA1EW9, MT25QL256ABA1EW9, MT25QU256ABA1EW9, N25Q512A13GF840F TR, MT25QL512ABB1EW9, MT25QU512ABB1EW9, S25FS512SAGNF, S25FS512SDSNF, MT25QL01GBBB1EW9, MT25QU01GBBB1EW9, MT25QU02GBBB1EW9, MT29F1G01ABAFDWB, MT29F1G01ABBFDWB, MT29F2G01ABAGDWB, MT29F2G01ABBGDWB, MT29F4G01ADAGDWB

Spansion (8-WSON 6x8):
S25FL032P0XNFI003, S25FL032P0XNFI000, S25FL032P0XNFI001, S25FL064P0XNFI001, S25FL064P0XNFI003, S25FL064P0XNFI000, S25FL128SAGNFI001, S25FL128SAGNFI011, S25FL129P0XNFI001, S25FL128SAGNFI000, S25FL128P0XNFI001, S25FL129P0XNFI003, S25FL129P0XNFI013, S25FL128P0XNFI013, S25FL129P0XNFI000, S25FL129P0XNFI010, S25FL128SAGNFI003, S25FL128SAGNFI013, S25FL128P0XNFI000, S25FL129P0XNFI011, S25FL128SAGNFI010, S25FL128P0XNFI011, S25FL256SAGNFI001, S25FS256SDSNFI001, S25FL256SAGNFI000, S25FL256SAGNFI003, S25FL256SAGNFI013, S25FS256SAGNFI003, S25FS256SDSNFI003, S25FL256SAGNFI010, S25FS256SAGNFI000, S25FS256SDSNFI000, S25FL256SAGNFI011, S25FS256SAGNFI001

WINBOND (8-WSON 8x6):
W25Q32FVZEIG, W25Q32FWZEIG, W25Q32DWZEIG, W25X32VZEIG, W25Q64FVZEIG TR, W25X64VZEIG, W25Q64BVZEIG, W25Q64DWZEIG, W25Q64CVZEIG, W25Q128FVEIG, W25Q128FVEIF TR, W25Q128FVEIQ TR, W25Q128FWEIG TR, W25Q128FVEIF, W25Q128FVEIQ, W25Q128FWEIG, W25Q128BVEIG, W25Q256FVEIG TR, W25Q256FVEIF TR, W25Q256FVEIQ TR, W25Q256FVEIG, W25Q256FVEIF, W25Q256FVEIQ, W25Q256JV, W25Q256JW, W25R256JV, W25R256JW, W25M512JVEIQ TR, W25M512JVEIQ, W25H512JV, W25H512JW, W25N01GV, W25N01GW, W25N02GV, W25N02GW

[ArT]

There are also new smaller packages: DFN-8 2x3mm and DFN8 3x4mm. Other popular names are UDFN-8, USON-8 and VSON-8.

• 2x3 mm is 0.50mm pitch
• 3x4 mm is 0.80mm pitch

DFN-8 2x3mm (3x2mm) to DIL-8 adapter


DFN-8 3x4mm (4x3mm) to DIL-8 adapter


• both adapters are 1:1 (pin to pin) for DIL-8 or DIP-8 sockets + 1 additional pin for ground plane (not used in most cases and it can be removed). It's compatible with most programmers (e.g. with REVELPROG-IS).
• all adapters are available on REVELTRONICS' store
